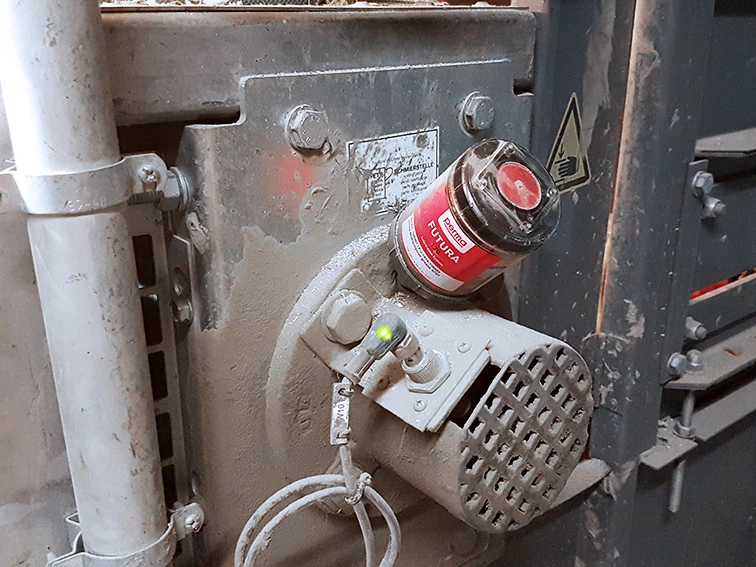

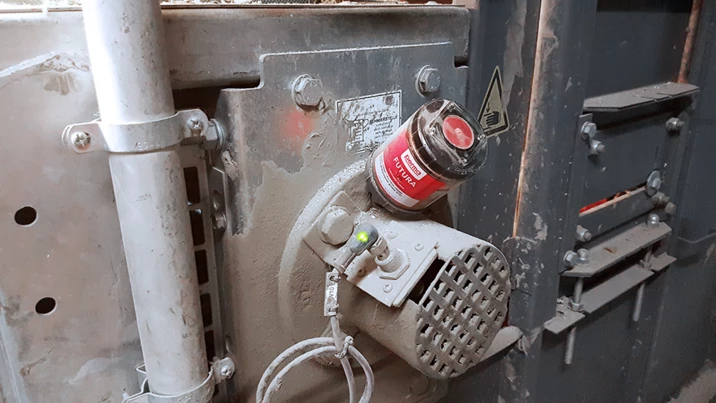

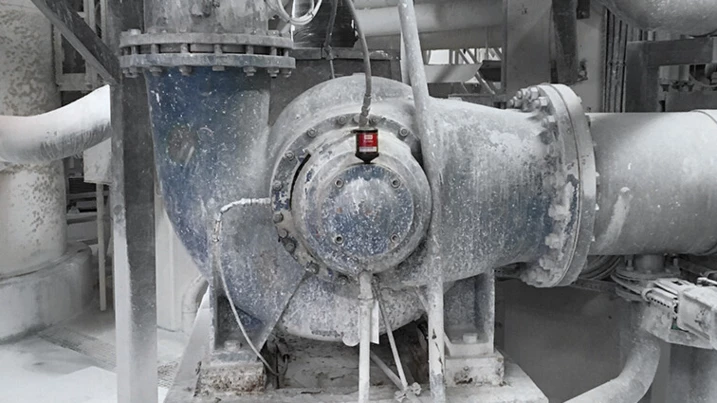

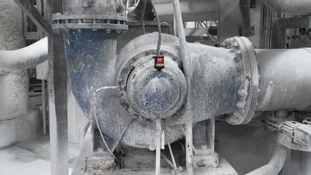

perma FUTURA is suitable for single-point lubrication of roller- and sliding bearings, sliding guides, open gears, gear racks, spindles, shaft seals and chains. This lubrication system is ideal for areas that must be kept hygienically clean. Due to its resistance to corrosion it is especially suited for applications in the food industry.

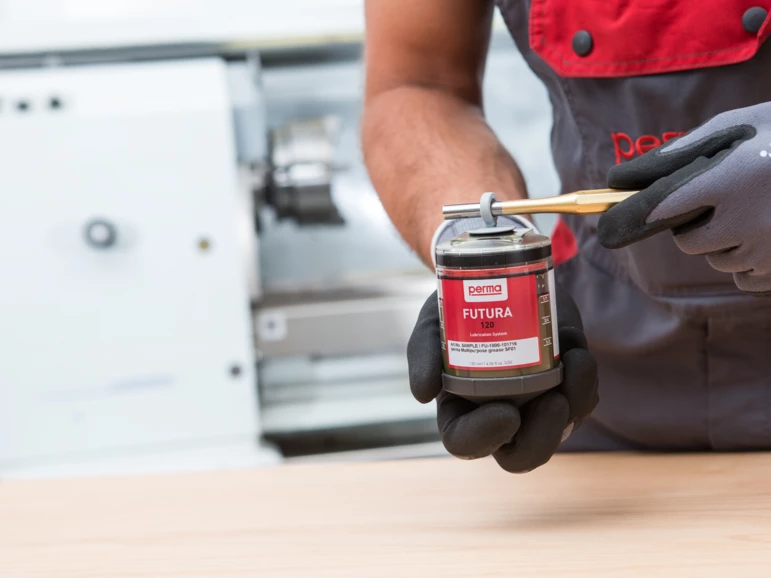

Simple activation with activator screw
- One-time activation: 1, 3, 6 or 12 months
- Simple exchange / no special tools required
- Inexpensive automatic single-point lubrication

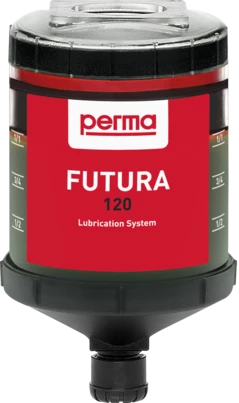

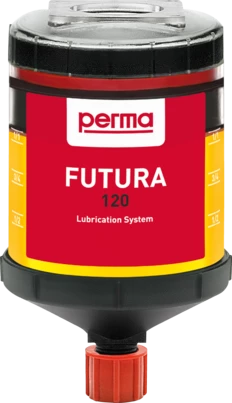

Transparent plastic housing with integrated support flange
- Easy fill level check via permanently visible position of piston in lubrication system
- Corrosion-proof
Ex-proof certification, Mining approval
- Safe and reliable lubrication in explosive areas
- Less exposure to safety hazards increases workplace safety
- Suitable for underground use
| Drive | Electrochemical reaction via gas generator |
|---|---|
| Housing | Transparent plastic |
| Discharge period | 1, 3, 6, 12 months |
| Lubricant volume | 120 cc | 4.06 fl. oz |
| Operating temperature | 32 °F to 104°F | 0 to 40 °C |
| Pressure build-up | Max. 58 psi | 4 bar |
| Number of outlets | 1 |
| Lubricants | Grease up to NLGI 2 | oil |
| Max. tube lengths | 3.2 ft | 1.00 m |
| CE | ✓️ |
| Ex | ✓️ |
Further information & contact
Our staff will be happy to advise you at any time. Commonly asked questions regarding this product are available in the FAQs section
